The MezzaLift® Mezzzanine Material PALLET Freight Lifts



Lift heavy items, freight, pallets, carts, and anything else between the floor and the mezzanine level(s) with the MezzaLift®.  At Verticon®, we can custom design this pallet handling material lift based on your needs. Custom sizes are available upon request. Some of the distinct benefits of our lift include:


  • Easy Installation (Ships Fully Assembled or Modular)
  • No Preventative Maintenance Required
  • Reliable (No Unplanned/Unscheduled Maintenance)
  • All Electric
  • Local Distributor Support



The MezzaLIFT® is completely electric – eliminating all mess and hassle associated with similar hydraulic driven vertical conveyors. The platform is simply raised and lowered using an electric chain hoist. The Model "ML" is simple, functional, and economical.


Some of the standard features include:


Standard Lift Heights to 144" (Custom Heights Available)


Standard Platform Sizes (Custom Sizes Available)

  • 48" Long x 48" Wide x 60" Product Clearance
  • 60" Long x 60" Wide x 60" Product Clearance


Standard Vertical Speeds

  • 14-28 Feet per Minute (FPM)


Capacities of 500 Pounds to 5,000 Pounds


Two Remote Push Button Stations (Up/Down and Emergency Stop)


Cam/Spring Activated Free-Fall Safety Brake


96" high safety guarding surrounds unit on all open sides at floor level and mezzanine level. Access gates are electro-mechanically interlocked. The unit will not operate if either gate is open. The gates cannot be opened while unit is in motion and only the platform present gate can be opened.

Mezzanine Vertical Reciprocating Conveyor

Material Lifts | Pallet Lifts | Freight Lifts | VRCs

Goto Mezzanine Section

MezzaLIFT®

Material Lift Freight Lift Elevator for servicing mezzanine and mezzanine systems

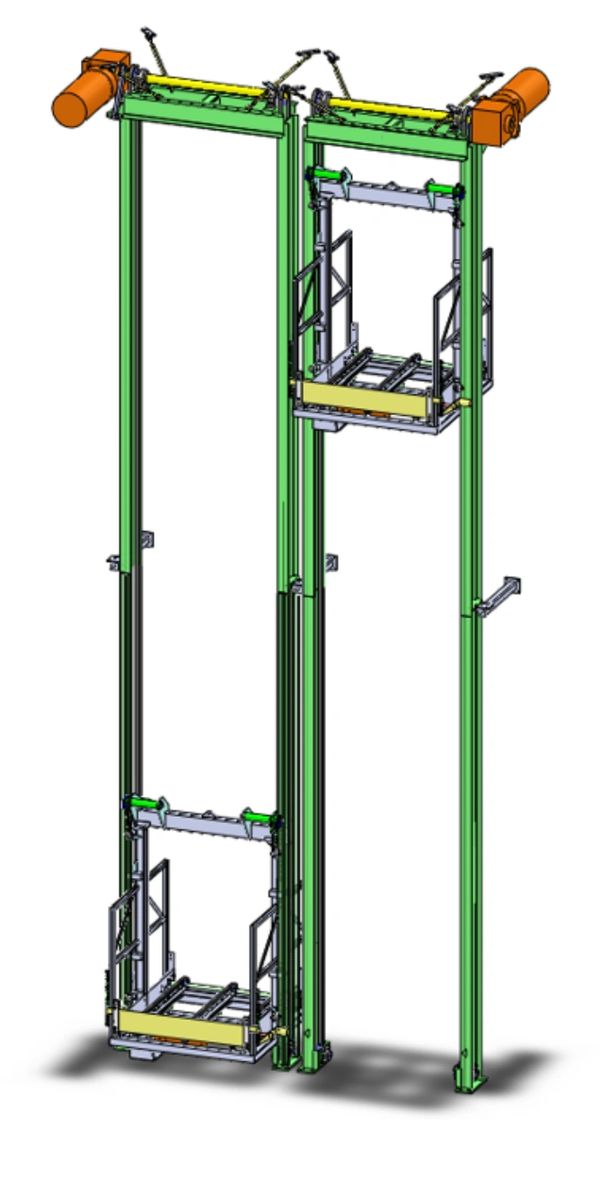

Simple Multi Floor Design

Material Lift Freight Lift Elevator safety guarding

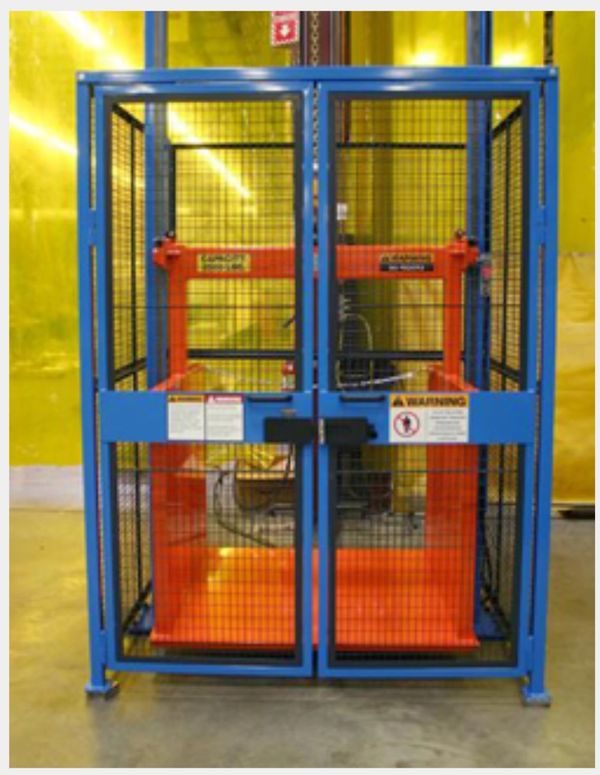

Required Safety Guarding & Electro-Mechanical Interlocking Gates

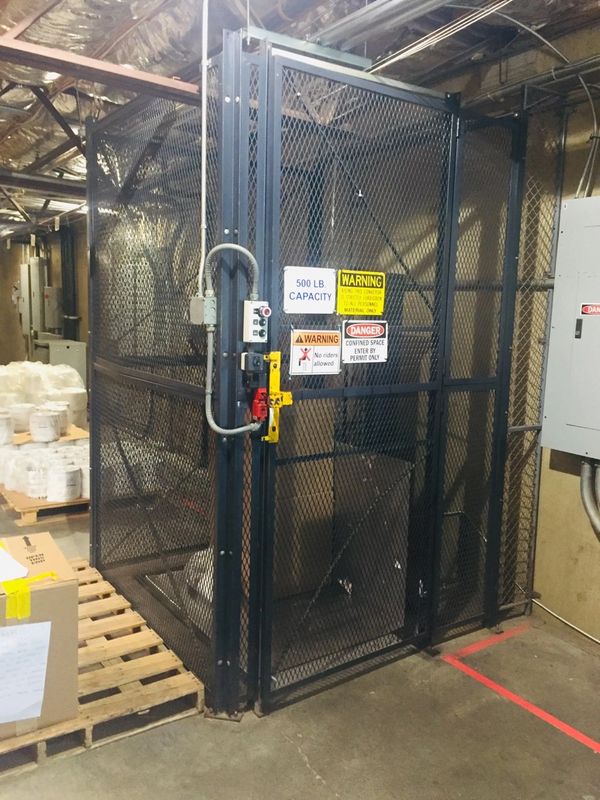

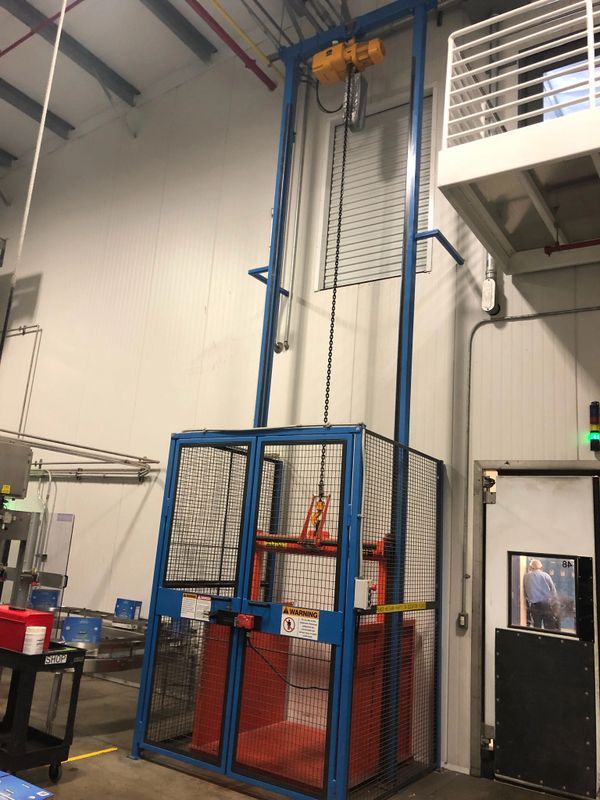

Material Lift customer installation

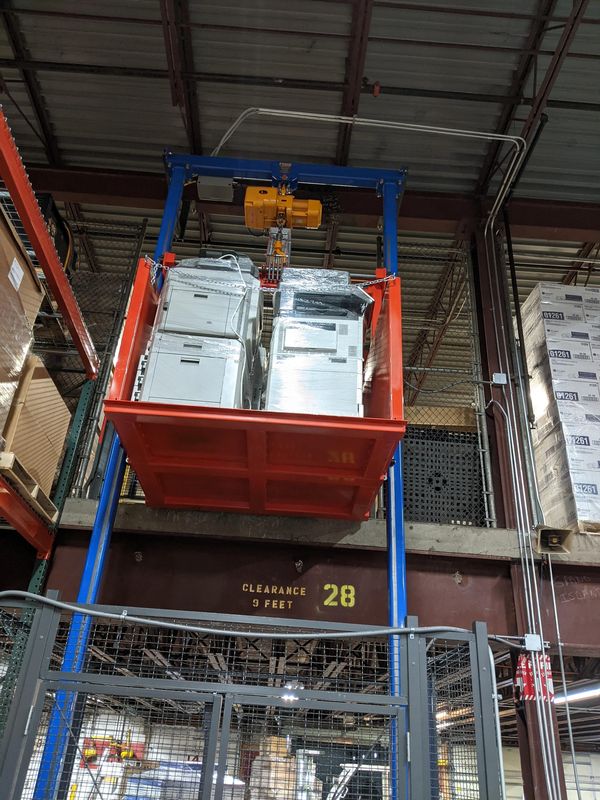

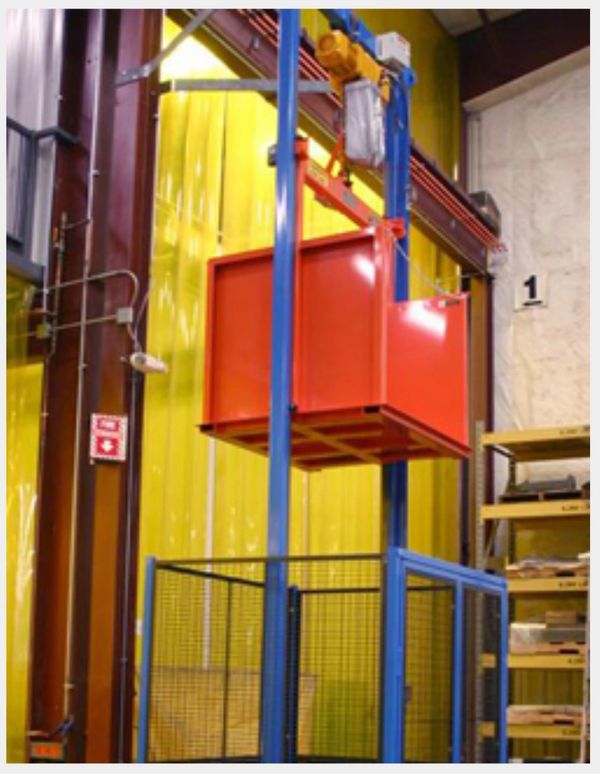

material lift freight live elevator customer installation
Material Lift Freight Lift Elevator Safety Guarding

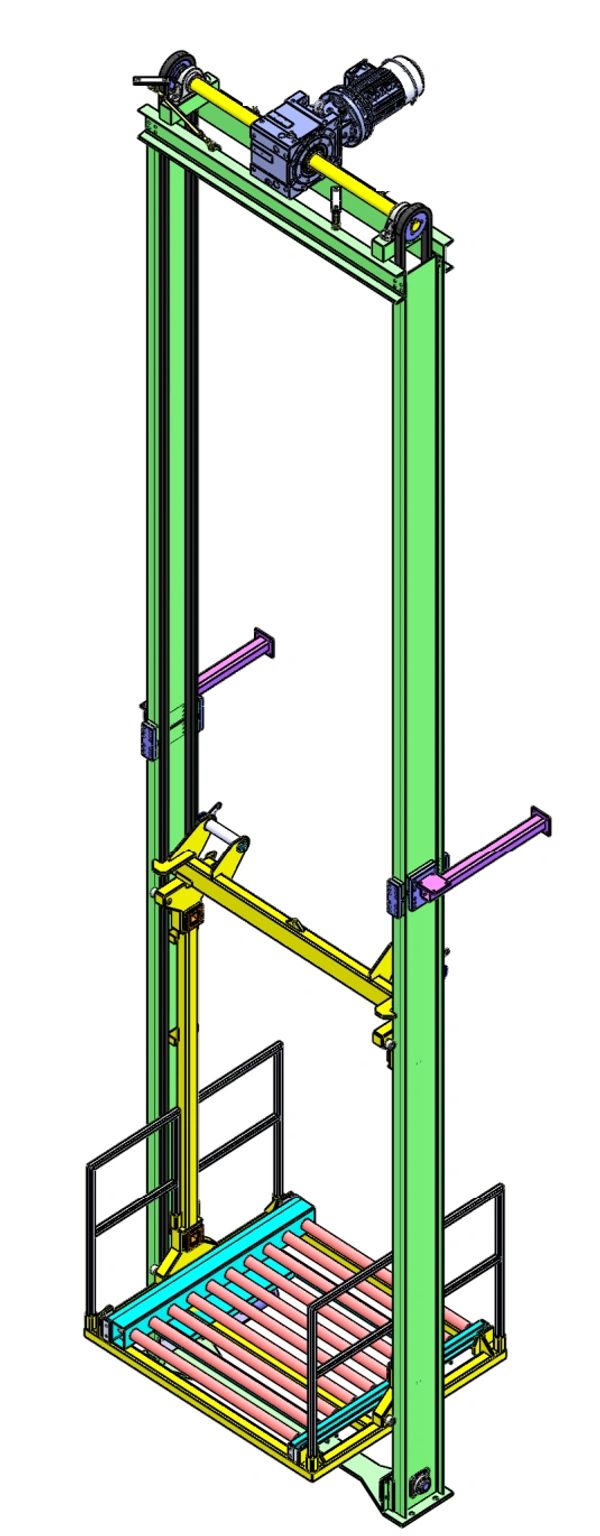

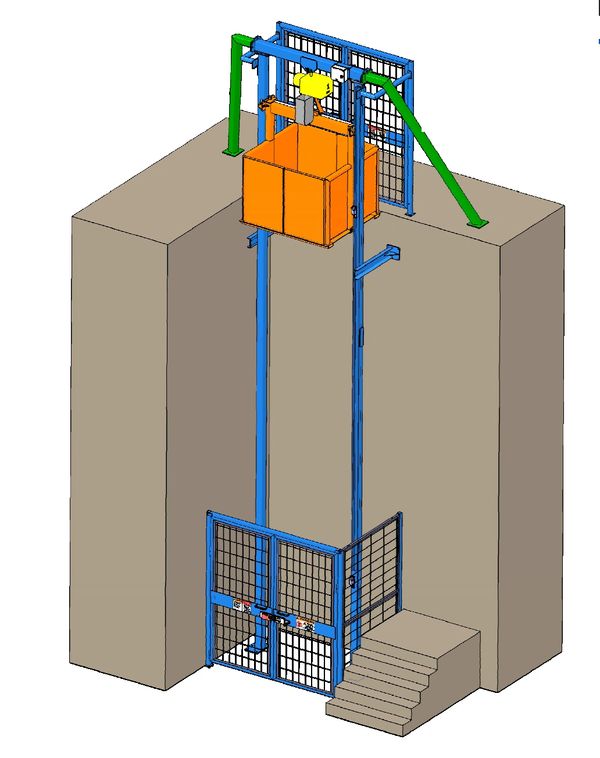

Material Lift Freight Lift Elevator concept drawing
Verticon MezzaLift Material Lift Vertical Reciprocating Conveyor VRC

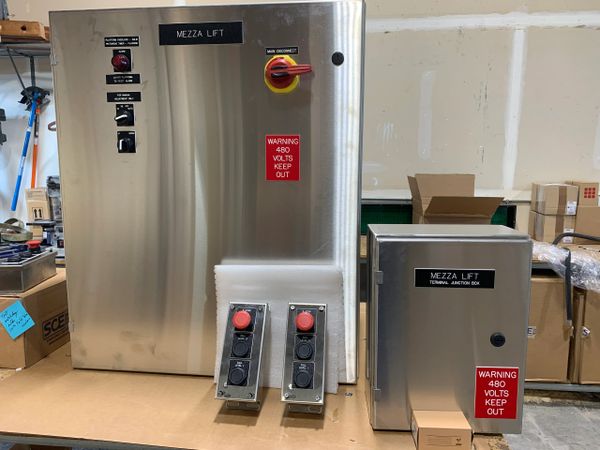

Material Lift Freight Lift Elevator control panels

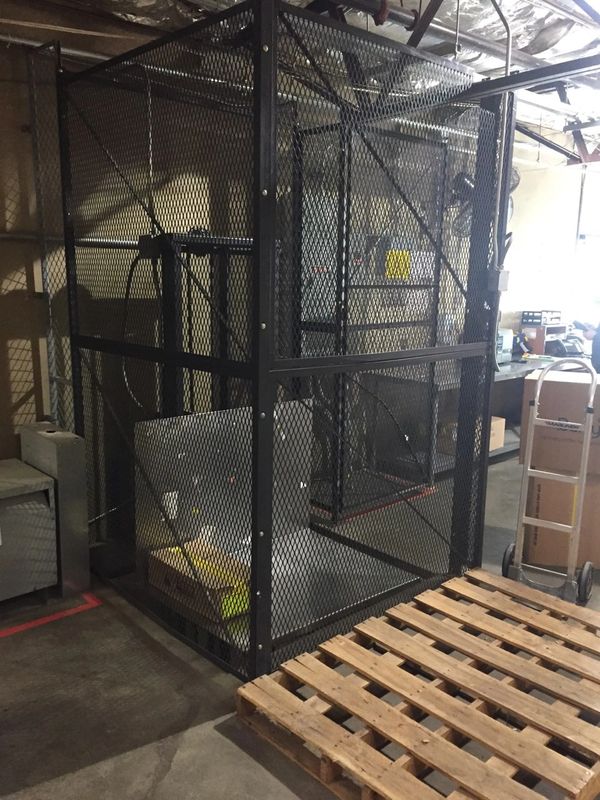

Material Lift safety guarding

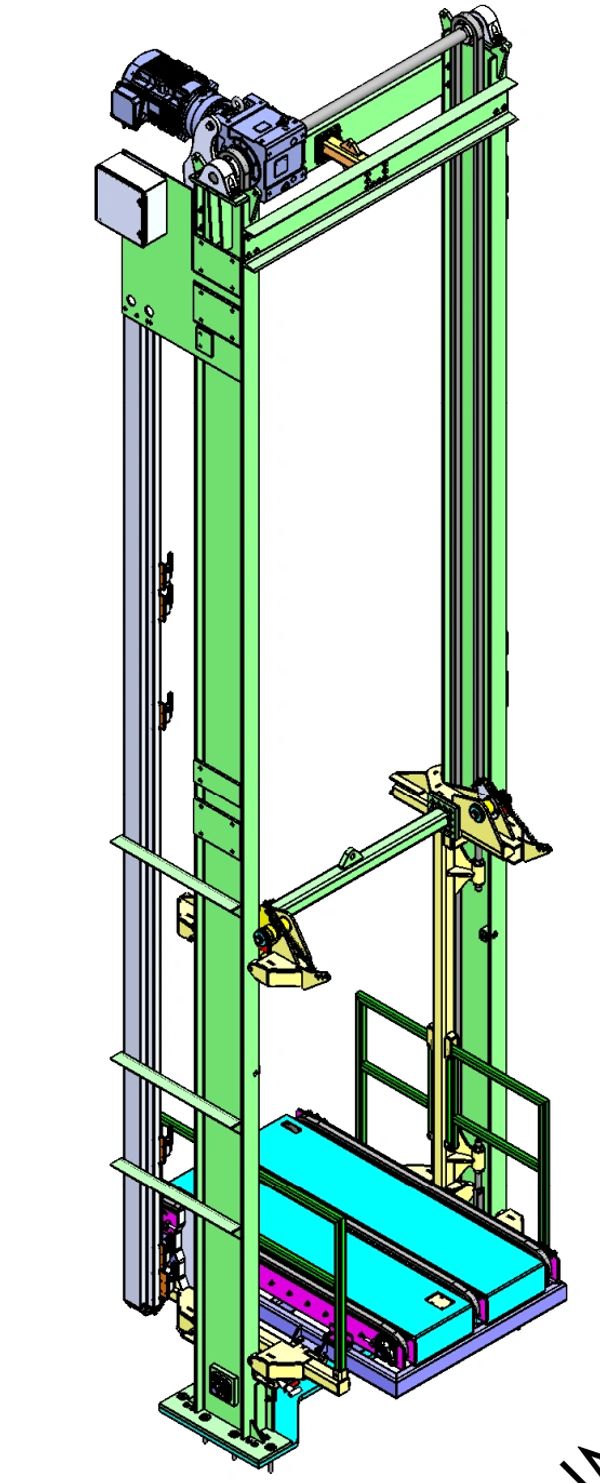

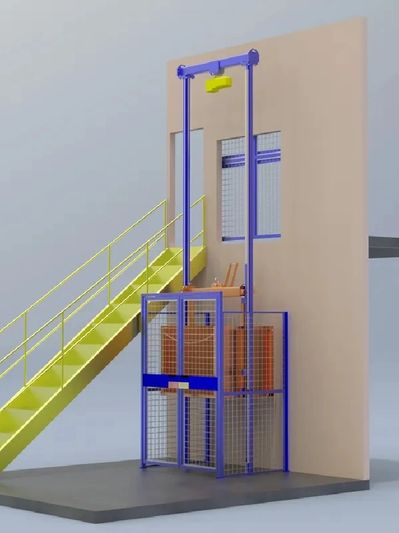

MezzaLift computer render Material Lift Freight Lift Elevator

"RC" SERIES PALLET VERTICAL CONVEYORS





Verticon's® "RC" Series Integrated Pallet Vertical Conveyor is used for moving loads between mezzanines and floors. It utilizes an electric chain-driven-live-roller conveyor or drag-chain conveyor to automatically load and unload the lift at two or more levels. It is typically automated with infeed and discharge conveyors for automatic loading and unloading.


Designed for heavy-duty continuous usage, they use only name-brand components including Sumitomo® for the drive motors and Allen-Bradley® for controls. All our buyout components are readily available through Verticon®  or your local power/transmission and controls houses.


The Model “RC” automated pallet lifts are available in a straddle or four-post design where the conveyor carriage is guided up and down two centered structural steel “W” Beams. A “C” and “Z” product flow can be achieved.


The standard integral conveyors are designed around a standard 40” x 48” GMA pallet. Larger and/or smaller size conveyors are also available. Custom capacities are also available. Units are covered by the best warranties in the business.


Warranties


  • Two-Year, 24-Hour-a-Day Warranty on the Sumitomo®  Drive System


  • Three-Year Warranty on all Verticon®  Manufactured Parts and Sub-Assemblies


  • Three-Year Warranty on All Buyout Parts

Vertical reciprocating conveyor straddle design

Vertical reciprocating conveyor straddle design

Photo Gallery

Vertical Reciprocating Conveyor, Material Lift and Freight Lift, VRC, Automated
Vertical Reciprocating Conveyor Drag Chain Conveyor
Automated Vertical Reciprocating Conveyor Pallet Lift Freight Lift
Vertical Reciprocating Conveyor carriage weldment
vertical reciprocating conveyor material lift freight lift main guide beams

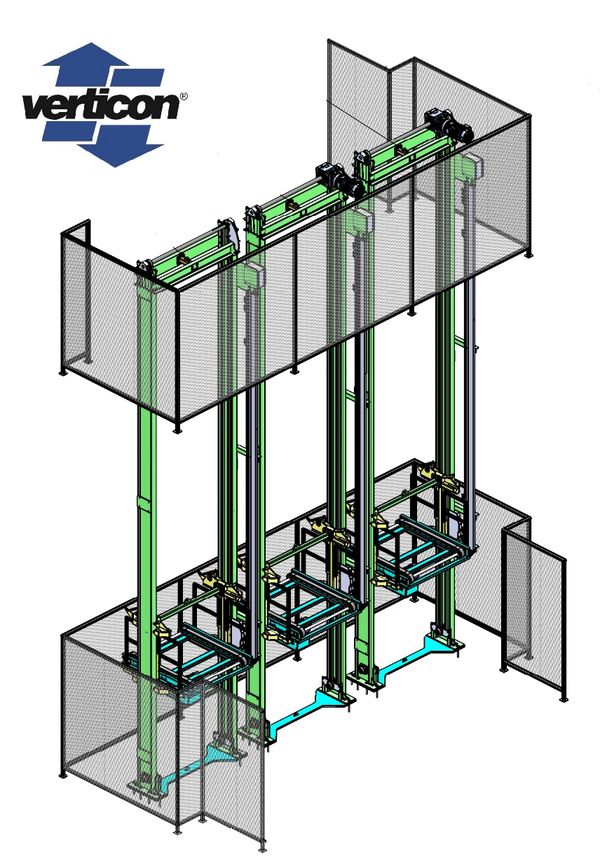

Vertical Reciprocating Conveyors operating side by side

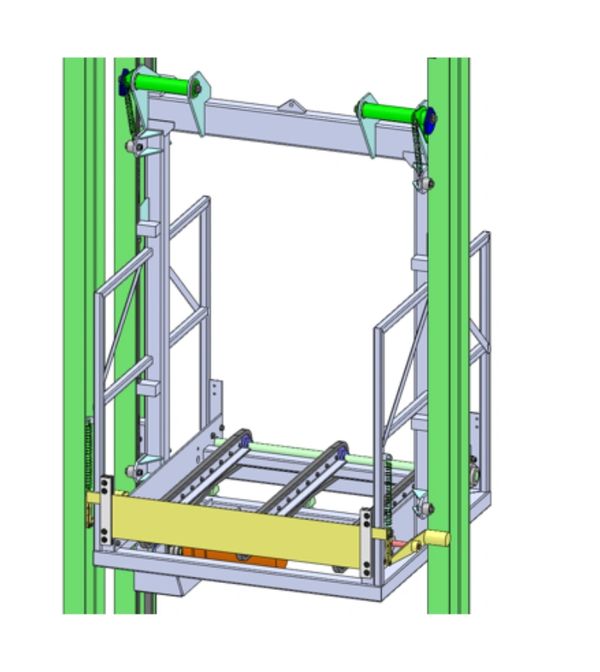

vertical reciprocating conveyor carriage close-up

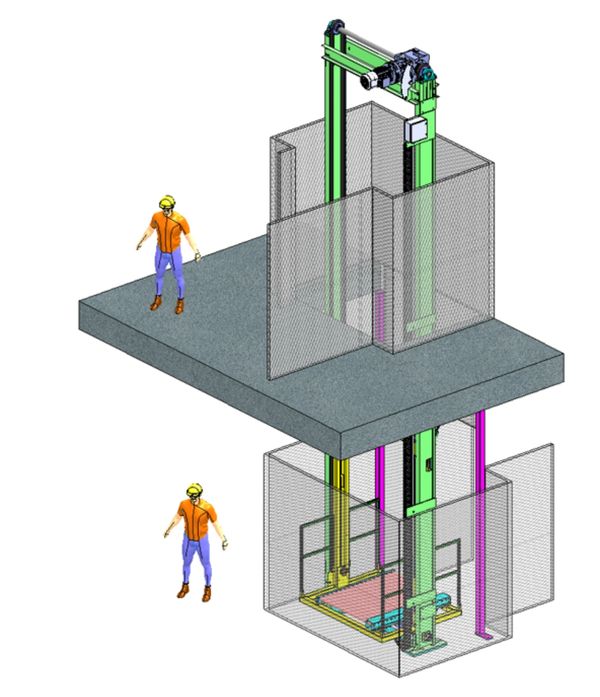

Vertical Reciprocating Conveyor Material Lift accessing two floors
Vertical Reciprocating Conveyors and Guarding System
